wire resistance heating manufacturer

FOB Price:

US 1-50 / Kilogram

Min.Order Quantity:

1 Kilogram/Kilograms

Supply Ability:

200000 Kilogram/Kilograms per Month

Port:

SHANGHAI

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,PAYPAL

Brand:

REOU

Products Model:

Cr20Ni80, Cr30Ni70,Cr20Ni30,Cr20Ni35, Cr25Ni20, Cr15Ni60

Products Details
Company Profile

Quick Details

Brand Name: REOU

Model Number: Cr20Ni80, Cr30Ni70,Cr20Ni30,Cr20Ni35, Cr25Ni20, Cr15Ni60

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: spool or coil , carton , pallet or wooden case
Delivery Detail: as per order quantity or client's requirement

Specifications

Nickel Chromium heating resistance wire (Manufacturer)

Nickel-Chrome & Nickel-Chrome-Iron alloy wire

The Nickel-Chrome and Nickel-Chrome-Iron alloy wires are widely used as the high resistance alloy for electrical heating and wire-wound resistors in metallurgical industry,chemical industry and electrical industry, etc.
This alloy wire has higher electrical resistance coefficient, good anti-oxidation and anti-corrosion performance, and it also has good mechanical workability and weldability, with a high strength at high temperature.

Main characteristics of Ni-Cr and Ni-Cr-Fe electric heating alloys

Type Performance		Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30	Cr25Ni20
Main Chemical composition	Ni	Rest	Rest	55.0-61.0	34.0-37.0	30.0-34.0	19.0-22.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0	24.0-26.0
	Fe	≤1.0	≤1.0	Rest	Rest	Rest	Rest
Max. continuous service temp. of element (ºC)		1200	1250	1150	1100	1100	1050
Resistivity at 20oC (μΩ·m)		1.09±0.05	1.18±0.05	1.12±0.05	1.0±0.05	1.04±0.05	0.95±0.05
Density (g/cm³)		8.40	8.10	8.20	7.90	7.90	7.15
Thermal conductivity (KJ/m·h·ºC)		60.3	45.2	45.2	43.8	43.8	43.8
Coefficient of lines expansion (α×10^-6/ºC)		18.0	17.0	17.0	19.0	19.0	19.0
Melting point (approx.)( ºC)		1400	1380	1390	1390	1390	1400
Elongation at rupture (%)		>20	>20	>20	>20	>20	>20
Micrographic structure		austenite	austenite	austenite	austenite	austenite	austenite
Magnetic properties		nonmagnetic	nonmagnetic	nonmagnetic	Weak magnetic	Weak magnetic	Weak magnetic

Note: The various grades of electric resistance alloy material are blended with the amount of rare earth , titanium and other trace elements, to improve the processing performance and extend the period of the uselife .

Note: special specification can be produced as per client’s request.

Nickel Chromium heating resistance wire Technical Data of Wires

Application :

Product show in a one of warhouse :

Production Process :

FACTORY SHOW :

Email to this supplier
To :

Lucie | Jiangyin Senphus Electrical Material Co., Ltd
*Subject :
Quantity Order:
*Message :

Please enter your message.
Your message must be between 20-2000 characters

+ Add attachments :
Select File (Max 2 files)
Please enter your company name:

Please make sure your company name is entered correctly.
* Please enter your email address:

Please make sure your email address is entered correctly.
* Please enter your mobile phone:

(+) -

Please make sure your mobile phone is entered correctly.

Verified Supplier - Jiangyin Senphus Electrical Material Co., Ltd Bussiness Type: Manufacturer
Scale: 301 - 500 People
Country/Region: China (Mainland)/Asia
Established:

You May Like:

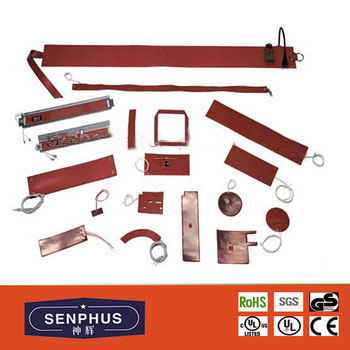

12v and 24v silicone rubber heater of UL
US 1-200 / Piece 1 Piece/Pieces (Min.Order)

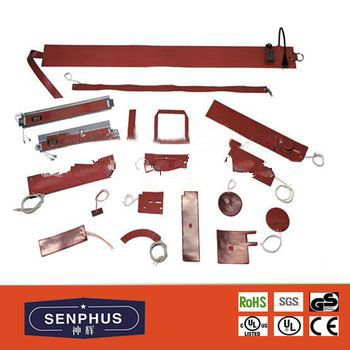

Customize 12v 24v 36v 110v 115v 120v 220v 230v 240v flexible silicone rubber heating pad with UL RoHS
US 1-200 / Piece 1 Piece/Pieces (Min.Order)

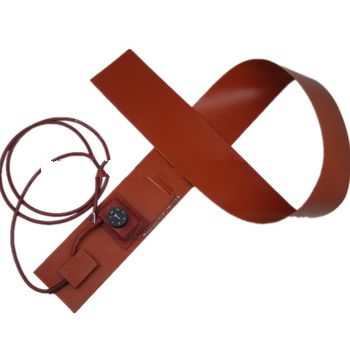

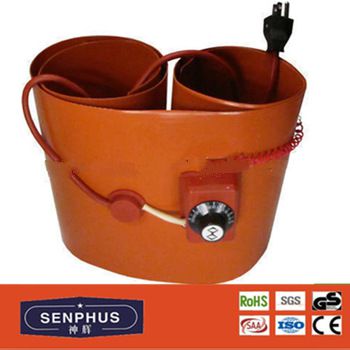

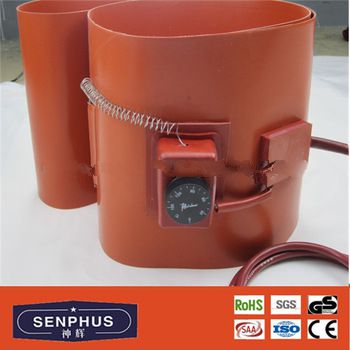

oil drum heater
US 100-130 / Piece 1 Piece/Pieces (Min.Order)

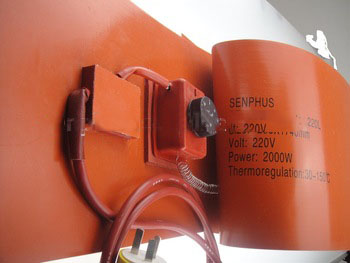

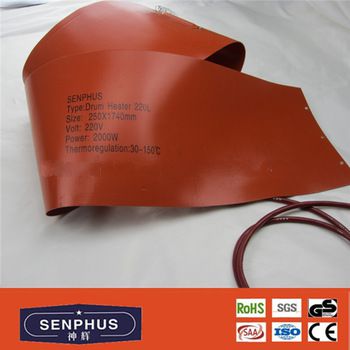

200L oil drum heater 2000W drum heater 220V 250*1740*1.5mm
US 100-130 / Piece 1 Piece/Pieces (Min.Order)

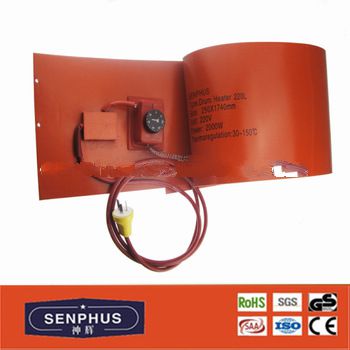

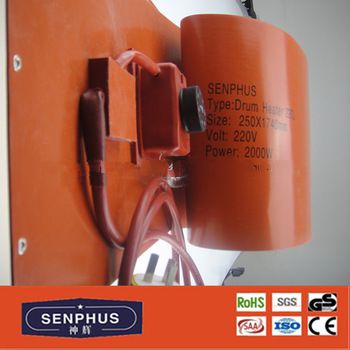

2014 new 55 Gallon drum heaters size 250*1740*1.5,220v,2000w,with digital display temperature controller
